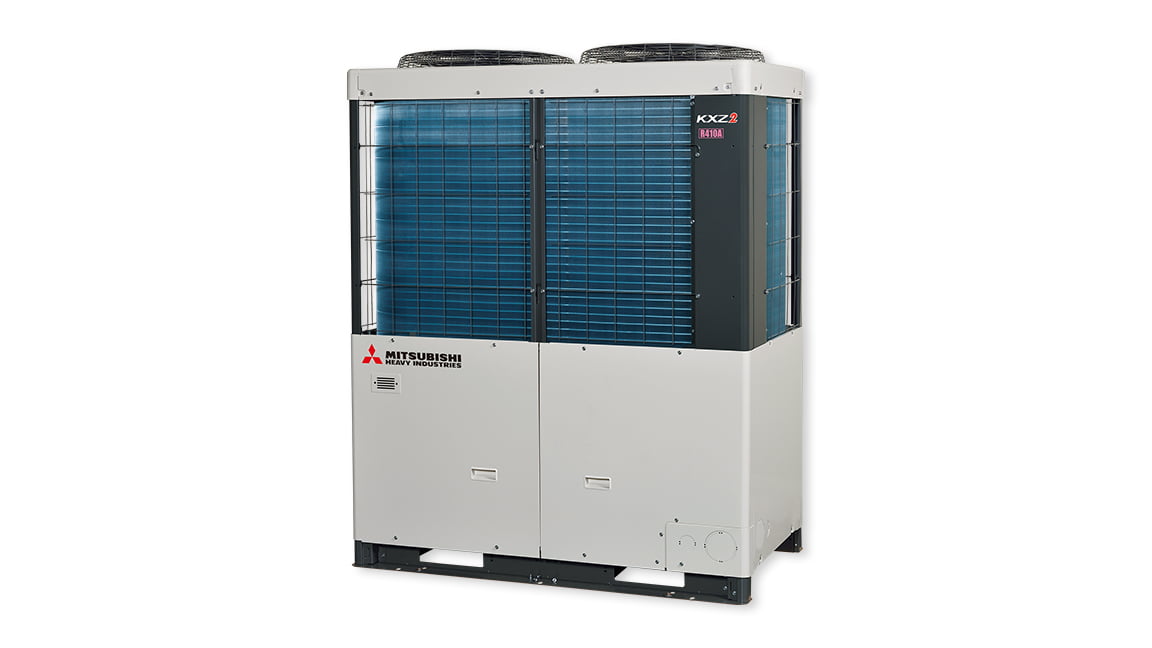

The KXZE2 series of VRF systems offer a high performance and versatile solution for medium to large scale commercial applications. With design improvements to the heat exchanger, inverter control, compressor and the DC fan motor, the KXZE2 series boasts a robust design and delivers higher performance and energy efficiencies.


POWER: Three Phase | AVAILABLE IN: 2 Pipe

CAPACITIES: 28.0kW – 168.0kW

Key features

  • Connect up to 80 indoor units / up to 200% connection capacity for standard and 160-200% for large connection models.
  • Total piping length up to 1000m
  • New Heat Exchanger design for improved refrigerant distribution and increased effectiveness
  • Blue Fin technology for improved corrosion resistence of the heat exchanger
Standard Models
ModelkWMax no. connectable I.U.Maximum Connection Capacity (%)
FDC280KXZE228.037200
FDC335KXZE233.544200
FDC400KXZE240.053200
FDC450KXZE245.060200
FDC475KXZE247.550160
FDC500KXZE250.053160
FDC560KXZE256.059160
FDC615KXZE261.565160
FDC670KXZE267.071160
FDC735KXZE273.578160
FDC800KXZE280.080160
FDC850KXZE285.080160
FDC900KXZE290.080160
FDC950KXZE295.080160
FDC1000KXZE2100.080130
FDC1060KXZE2106.080130
FDC1120KXZE2112.080130
FDC1200KXZE2120.080130
FDC1250KXZE2125.080130
FDC1300KXZE2130.080130
FDC1350KXZE2135.080130
FDC1425KXZE2142.580130
FDC1450KXZE2145.080130
FDC1500KXZE2150.080130
FDC1560KXZE2156.080130
FDC1620KXZE2162.080130
FDC1680KXZE2168.080130
Ceiling Cassette
4wayFDT
Capacity
kW
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
4way CompactFDTC
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
2wayFDTW
Capacity
kW
2.8
4.5
5.6
7.1
9.0
11.2
14
1wayFDTS
Capacity
kW
4.5
7.1
1way compactFDTQ
Capacity
kW
2.2
2.8
3.6
Ducted
High Static PressureFDU
Capacity
kW
4.5
5.6
7.1
9.0
11.2
14
16
22.4
28
Low/Middle Static PressureFDUM
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
Low Static Pressure (thin)FDUT
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
Compact & FlexibleFDUH
Capacity
kW
2.2
2.8
3.6
Wall Mounted
FDK
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
Ceiling Suspended
FDE
Capacity
kW
3.6
4.5
5.6
7.1
11.2
14
Floor Standing
2wayFDFW
Capacity
kW
2.8
4.5
5.6
with casingFDFL
Capacity
kW
7.1
without casingFDFU
Capacity
kW
2.8
4.5
5.6
7.1
OA Processing Unit
FDU-F
Capacity
kW
9.0
14
22.4
28
