Set | FDT60ZSXAWVH | FDT71AVNXWVH | FDT100AVNAWVH | FDT100AVNPWVH | FDT125VNPWVH | FDT125AVNPWVH | FDT125AVNXWVH | FDT140AVNXWVH | FDT100AVSAWVH | FDT125AVSXWVH | FDT140AVSXWVH |
Indoor | FDT60VH | FDT71VH | FDT100VH | FDT100VH | FDT125VH | FDT125VH | FDT125VH | FDT140VH | FDT100VH | FDT125VH | FDT140VH |
Outdoor | SRC60ZSXA-W | FDCA71VNX-W | FDCA100VNA-W | FDCA100VNP-W | FDC125VNP-W | FDCA125VNP-W | FDCA125VNX-W | FDCA140VNX-W | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W |
Power source (Outdoor Unit) | | 1 Phase 240V 50Hz | 3 Phase 380-415V 50Hz |
*Operation data | Nominal Capacity (Range) | Cooling T1 | kW | 5.6 (1.1-6.3) | 7.1 (3.2-8.0) | 10.0 (4.0-11.2) | 10 (2.1 -10.2) | 12..1 (5.0-12.1) | 12..1 (5.0-12.1) | 12.5 (3.5-14.0) | 14.0 (3.5-16.0) | 10.0 (4.0-11.2) | 12.5 (3.5-14.0) | 14.0 (3.5-16.0) |
Heating H1 | 6.7 (0.6-6.7) | 8.0 (3.6-9.0) | 11.2 (4.0-12.5) | 10 (1.7 - 10.4) | 12.1 (4.0-13.3) | 12.1 (4.0-13.3) | 14.0 (2.7-17.0) | 16.0 (2.7-18.0) | 11.2 (4.0-12.5) | 14.0 (2.7 -18.0) | 16.0 (2.7-20.0) |
Heating H2 | 6.3 | 7.4 | 10 | 7.6 | 8.5 | 8.5 | 14.7 | 15.5 | 10 | 14.7 | 15.5 |
Power consumption | Cooling T1 | kW | 1.33 | 1.69 | 2.73 | 2.84 | 3.69 | 3.69 | 3.21 | 3.87 | 2.73 | 3.81 | 3.87 |
Heating H1 | 1.56 | 1.75 | 2.54 | 2.33 | 3.2 | 3.2 | 3.43 | 4.2 | 2.54 | 3.72 | 4.2 |
Maximum power consumption | kW | 2.9 | 4.11 | 6.4 | 4.46 | 4.75 | 4.75 | 7.1 | 7.1 | 10.2 | 8.9 | 8.9 |
Running current | Cooling T1 | A | 5.9 | 7.5 | 13.2 | 12.1 | 15.5 | 15.5 | 14.2 | 17 | 4.2 | 6.4 | 6.2 |
Heating H1 | 6.9 | 7.8 | 12.4 | 9.9 | 13.5 | 13.5 | 15.1 | 18.3 | 3.9 | 6.3 | 6.7 |
Inrush current, maximum current | A | 5, 15 | 5, 19.1 | 5, 24 | 5,19 | 5, 18 | 5, 18 | 5, 27 | 5, 27 | 5, 15 | 5, 14 | 5, 14 |
EER | Cooling T1 | | 4.21 | 4.2 | 3.66 | 3.52 | 3.28 | 3.28 | 3.89 | 3.62 | 3.66 | 3.89 | 3.62 |
COP | Heating H1 | 4.29 | 4.58 | 4.41 | 4.29 | 3.78 | 3.78 | 4.08 | 3.81 | 4.41 | 4.08 | 3.81 |
Sound power level (JIS C9612) | Outdoor | dB(A) | 65 | 66 | 70 | 68 | 73 | 73 | 68 | 69 | 69 | 68 | 69 |
Sound pressure level (JIS C9612) | Indoor | dB (A) | P-Hi:44 Hi:34 Me:30 Lo:27 | P-Hi:46 Hi:34 Me:31 Lo:26 | P-Hi:47 Hi:39 Me:36 Lo:30 | P-Hi: 47 Hi: 39 Me: 36 Lo: 30 | P-Hi: 48 Hi: 41 Me: 39 Lo: 31 | P-Hi: 48 Hi: 41 Me: 39 Lo: 31 | P-Hi:48 Hi:41 Me:39 Lo:31 | P-Hi:48 Hi:42 Me:39 Lo:32 | P-Hi:47 Hi:39 Me:36 Lo:30 | P-Hi : 48 Hi : 41 Me : 39 Lo : 31 | P-Hi:48 Hi:42 Me:39 Lo:32 |
Outdoor | 54 | 51 | 55 | 56 | 57 | 57 | 54 | 54 | 55 | 54 | 54 |
External dimensions (HxWxD) | Indoor | mm | 236x840x840 | 236x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 | 298x840x840 |
Panel | 35x950x950 T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black) | 35x950x950 T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black) |
Outdoor | 640x800(+71)x290 | 750x880(+88)x340 | 845x970x370 | 750 × 880(+88) × 340 | 845x970x370 | 845x970x370 | 1300x970x370 | 1300x970x370 | 845x970x370 | 1300x970x370 | 1300x970x370 |
Net weight | Indoor | kg | Unit 21 Panel 5 | Unit 21 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 | Unit 25 Panel 5 |
Outdoor | 45 | 60 | 77 | 57 | 73 | 73 | 97 | 97 | 78 | 99 | 99 |
Airflow | Indoor (Cooling) | l/s | P-Hi: 433 Hi: 283 Me: 233 Lo: 183 | P-Hi: 467 Hi: 300 Me: 250 Lo: 200 | P-Hi: 616 Hi: 433 Me: 383 Lo:283 | P-Hi:616 Hi:433 Me:383 Lo:283 | P-Hi: 633 Hi: 467 Me: 417 Lo: 300 | P-Hi: 633 Hi: 467 Me: 417 Lo: 300 | P-Hi: 633 Hi: 467 Me: 417 Lo: 300 | P-Hi: 633 Hi: 483 Me: 433 Lo: 317 | P-Hi: 616 Hi: 433 Me: 383 Lo:283 | P-Hi: 633 Hi: 467 Me: 417 Lo: 300 | P-Hi: 633 Hi: 483 Me: 433 Lo: 317 |
Indoor (Heating) |
Refrigerant (R32) | Quantity | kg | 1.3 | 2.75 | 3.3 | 1.7 | 2.25 | 2.25 | 4 | 4 | 3.3 | 4 | 4 |
Pre charged to pipe length | m | 15 | 30 | 30 | 15 | 15 | 15 | 30 | 30 | 30 | 30 | 30 |
Installation data | Refrigerant piping | Liquid line | mm | Ø6.35 | Ø9.52 | Ø9.52 | Ø6.35** | Ø9.52 | Ø9.52 | Ø9.52 | Ø9.52 | Ø9.52 | Ø9.52 | Ø9.52 |
Gas line | Ø12.7 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 | Ø15.88 |
Connection method | | Flare connection | Flare connection |
Maximum pipe (one way) length | m | 30 | 50 | 50 | 30 | 30 | 30 | 100 | 100 | 50 | 100 | |
Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | 30 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | 50 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) |

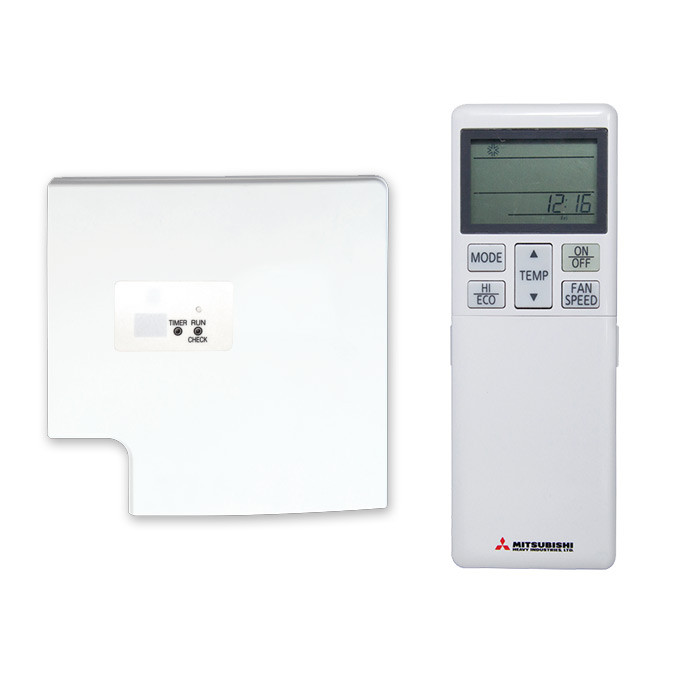

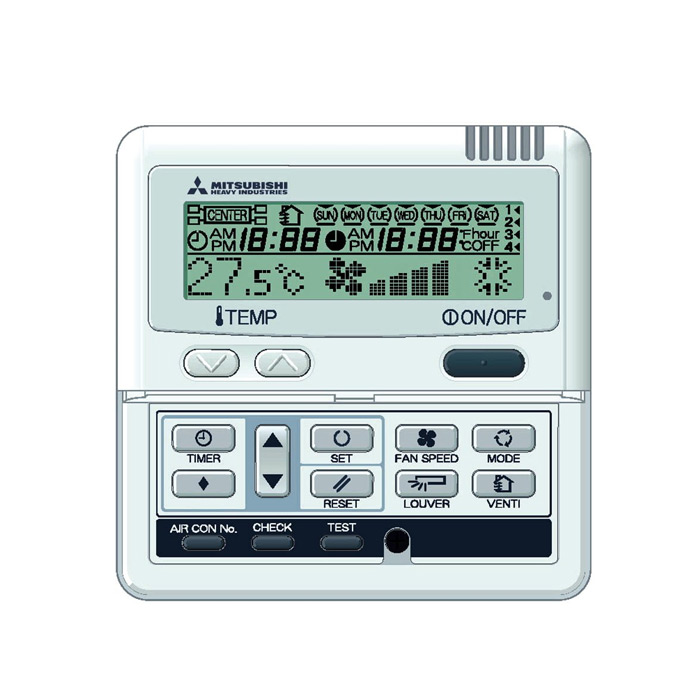

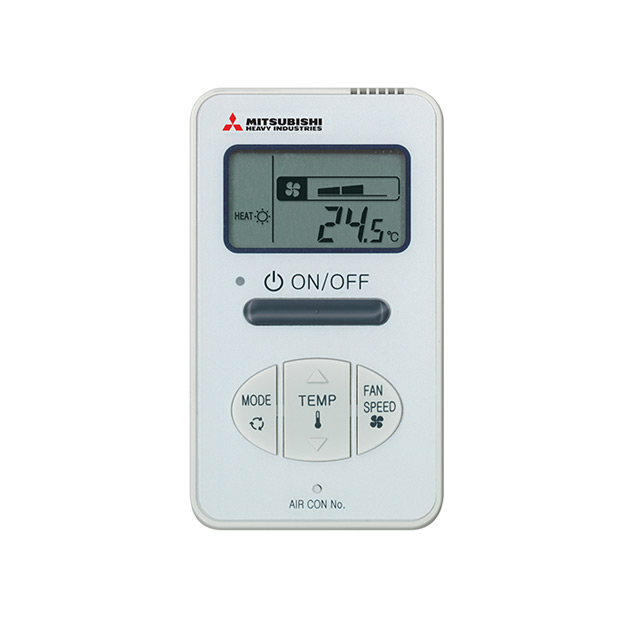

Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-T-5BW-E2 (Fine Snow) / RCN-T-5BB-E2 (Shadow Black) | RC-E5, RC-EXZ3A, RCH-E3 or RCN-T-5BW-E2 (Fine Snow) / RCN-T-5BB-E2 (Shadow Black) |
Motion Sensor (Optional) | LB-T-5BW-E (Fine Snow) / LB-T-5BB-E (Shadow Black) | LB-T-5BW-E |
Demand response (AS4755) | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | Yes | Yes |
Outdoor air temperature (upper, lower limits) | Cooling | C | -15 to +46 | -15 to 50 | -15 to 50 | -15 to 46 | -15 to 46 | -15 to 46 | -15 to 50 | -15 to 50 | -15 to 50 | -15 to 50 | -15 to 50 |
Heating | C | -20 to +20 | -20 to 20 | -20 to 20 | -15 to 20 | -15 to 20 | -15 to 20 | -20 to 20 | -20 to 20 | -20 to 20 | -20 to 20 | -20 to 20 |
* Operation data has been gathered in accordance with AS/NZS 3823 standards. |
**Reducer set Ø9.52 -> Ø6.35 is included in the outdoor unit as accessory for FDCA100VNP-W | | | | | | | | | | |
