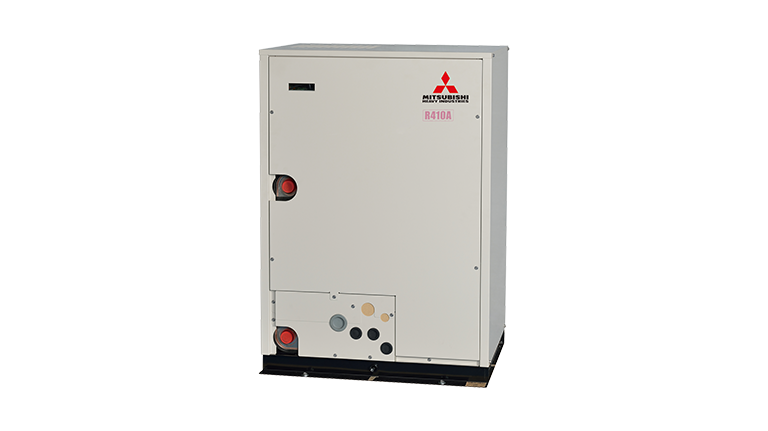

KXZW Series

Back to 2 Pipe Systems

With a footprint of only 1100 x 780 x 550, the KXZW series of watercooled VRF systems boasts a highly compact design while delivering higher energy efficiencies compared to air-cooled systems. The KZW series allows for flexible system design and connection of up to 80 indoor units.

POWER: Three Phase | AVAILABLE IN: 2 Pipe

CAPACITIES: 22.4kW – 100.0kW

Key features

  • Connect up to 80 indoor units
  • Compact design for easy installation and flexible system design
  • Higher EER/COP compared to air-cooled systems
  • Huge energy savings and reduced operating costs
  • Compatible with a range of systems

Request a KX Brochure

Contact MHI Consultant

Model Line-Up
Model kW Max no. connectable I.U. Maximum Connection Capacity (%)
FDC224KXZWE1 22.4 22 100
FDC280KXZWE1 28.0 28 100
FDC335KXZWE1 33.5 33 100
FDC450KXZWE1 45.0 44 100
FDC500KXZWE1 50.0 50 100
FDC560KXZWE1 56.0 56 100
FDC615KXZWE1 61.5 61 100
FDC670KXZWE1 67.0 67 100
FDC730KXZWE1 73.0 72 100
FDC775KXZWE1 77.5 78 100
FDC850KXZWE1 85.0 80 100
FDC900KXZWE1 90.0 80 100
FDC950KXZWE1 95.0 80 100
FDC1000KXZWE1 100.0 80 100
Ceiling Cassette
4way FDT
Capacity
kW
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
4way Compact FDTC
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
2way FDTW
Capacity
kW
2.8
4.5
5.6
7.1
9.0
11.2
14
1way FDTS
Capacity
kW
4.5
7.1
1way Compact FDTQ
Capacity
kW
2.2
2.8
3.6
Ducted
High Static Pressure FDU
Capacity
kW
4.5
5.6
7.1
9.0
11.2
14
16
22.4
28
Low/Middle Static Pressure FDUM
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
Low Static Pressure (thin) FDUT
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
7.1
Compact & Flexible FDUH
Capacity
kW
2.2
2.8
3.6
Wall Mounted
FDK
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
Ceiling Suspended
FDE
Capacity
kW
3.6
4.5
5.6
7.1
11.2
14
Floor Standing
2way FDFW
Capacity
kW
2.8
4.5
5.6
with casing FDFL
Capacity
kW
7.1
without casing FDFU
Capacity
kW
2.8
4.5
5.6
OA Processing Unit
FDU-F
Capacity
kW
9.0
14
22.4
28
