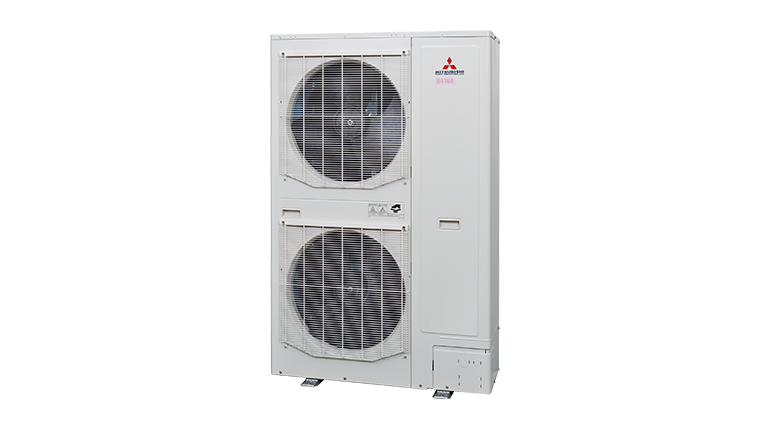

Powerful yet compact, the KXZP series of VRF systems deliver high performance for a range of commercial applications. The KXZP allows the connection of up to 8 units at 120% capacity and delivers high efficiency with a COP of up to 4.0.


POWER: Single Phase | AVAILABLE IN: 2 Pipe

CAPACITIES: 22.4kW – 28.0kW

Key features

  • Connect up to 8 indoor units / up to 120% capacity
  • High Efficiency with COP (in cooling) up to 4.0
  • Total piping length up to 150m
  • New Heat Exchanger design for improved refrigerant distribution and increased effectiveness
  • Blue Fin technology for improved corrosion resistence of the heat exchanger
Model Line-Up
ModelkWMax no. connectable I.U.Maximum Connection Capacity (%)
FDC224KXZPE122.48120
FDC280KXZPE128.08120
Ceiling Cassette
4wayFDT
Capacity
kW
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
4way CompactFDTC
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
2wayFDTW
Capacity
kW
2.8
4.5
5.6
7.1
9.0
11.2
14
1wayFDTS
Capacity
kW
4.5
7.1
1way CompactFDTQ
Capacity
kW
2.2
2.8
3.6
Ducted
High Static PressureFDU
Capacity
kW
4.5
5.6
7.1
9.0
11.2
14
16
22.4
28
Low/Middle Static PressureFDUM
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
11.2
14
16
Low Static Pressure (thin)FDUT
Capacity
kW
1.5
2.2
2.8
3.6
4.5
5.6
7.1
Compact & FlexibleFDUH
Capacity
kW
2.2
2.8
3.6
Wall Mounted
FDK
Capacity
kW
2.2
2.8
3.6
4.5
5.6
7.1
9.0
Ceiling Suspended
FDE
Capacity
kW
3.6
4.5
5.6
7.1
11.2
14
Floor Standing
2wayFDFW
Capacity
kW
2.8
4.5
5.6
with casingFDFL
Capacity
kW
7.1
without casingFDFU
Capacity
kW
2.8
4.5
5.6
OA Processing Unit
FDU-F
Capacity
kW
9.0
14
22.4
28
